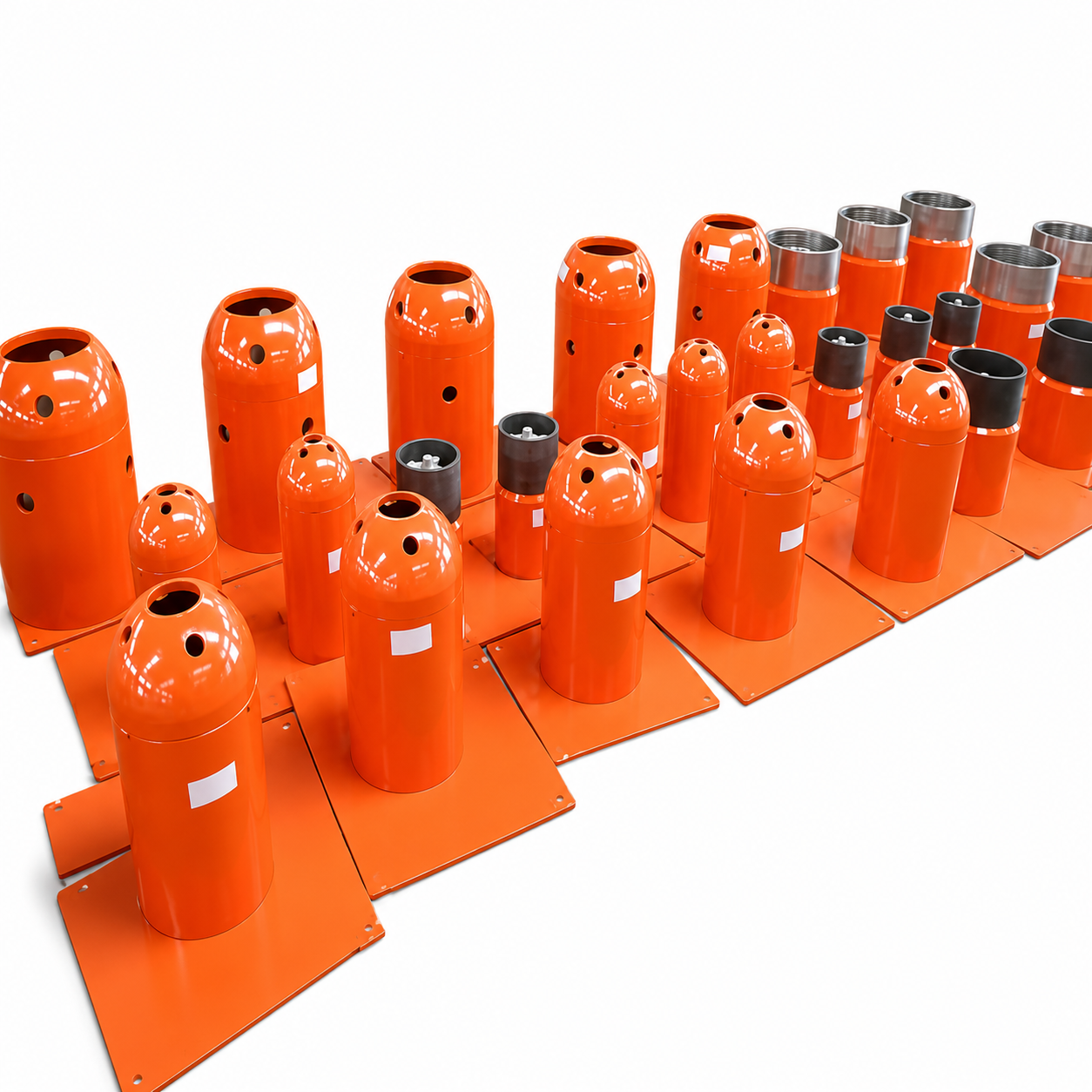

Float Shoe Float Shoe A Float Shoe is a critical casing accessory installed at the **bottom of the casing string during oil and gas well drilling operations. It is designed with an integrated **non-return (check) valve** that prevents drilling fluids or cement slurry from flowing back into the casing after pumping. The rounded nose of the float shoe also guides the casing safely into the wellbore, reducing the risk of snagging on ledges or formations. Float shoes are essential for achieving successful casing running and high-quality cementing operations in both onshore and offshore drilling projects. Applications * Oil and gas drilling operations * Onshore and offshore wells * Deepwater drilling * Directional and horizontal wells * Geothermal wells * Water well drilling * High-pressure and high-temperature (HPHT) wells Technical Specifications | Specification | Details | | -------------------- | ---------------------------------------- | | Product Type | Float Shoe | | Material | API Grade Steel | | Standard | API Spec 10D / API 5CT | | Connection Type | BTC, LTC, STC, Premium Threads | | Sizes Available | 4½" – 20" (Custom sizes available) | | Pressure Rating | Up to 10,000 psi (depending on model) | | Temperature Rating | Up to 250°C | | Valve Type | Single Valve or Double Valve | | Valve Material | Phenolic, Aluminium, Composite or PDC | | Nose Type | Rounded Cement Nose | | Corrosion Resistance | Yes | | Cement Compatibility | Standard and Lightweight Cement Slurries | Key Features * Integrated one-way check valve * Prevents cement backflow * Smooth rounded nose assists casing entry * Minimizes casing damage * Improves cement displacement efficiency * High-pressure sealing capability * Durable corrosion-resistant construction * Suitable for vertical, directional and horizontal wells * Available in single and double valve designs * API-compliant manufacturing Working Principle During cementing operations: 1. The casing string with the float shoe is lowered into the well. 2. Cement slurry is pumped through the casing. 3. The check valve inside the float shoe opens under pumping pressure. 4. Cement exits through the shoe into the annulus. 5. Once pumping stops, the valve automatically closes. 6. Backflow of cement or drilling fluid into the casing is prevented. This helps maintain cement integrity and reduces the risk of contamination. Advantages * Reduces cement contamination * Prevents reverse fluid flow * Improves well integrity * Minimizes non-productive time (NPT) * Enhances casing running performance * Reduces pump pressure requirements * Increases cementing success rate * Suitable for challenging well conditions * Long service life * Easy installation Typical Industries * Oil & Gas Exploration * Drilling Contractors * Well Construction Companies * Energy Service Providers * Geothermal Projects * Water Well Drilling Contractors Available Configurations * Standard Float Shoe * Double Valve Float Shoe * Auto-Fill Float Shoe * High-Temperature Float Shoe * Non-Rotating Float Shoe * PDC Drillable Float Shoe * Aluminium Float Shoe * Composite Float Shoe * Heavy-Duty Float Shoe * Premium Thread Float Shoe Inspection Before Use * Verify API thread condition. * Inspect the valve for proper operation. * Check for physical damage or corrosion. * Confirm the correct size and thread compatibility. * Ensure pressure rating meets well requirements. Maintenance * Store in a dry, covered environment. * Protect threaded ends with thread protectors. * Inspect before installation. * Avoid impact damage during transportation. * Follow API handling and storage guidelines. Float Shoe Available for Sale & Lease We supply high-quality **Float Shoes** for **sale and rental** to support casing and cementing operations across onshore and offshore drilling projects. Our Services * Equipment Sales * Short-Term Rental * Long-Term Lease * Bulk Supply * Worldwide Delivery * Technical Support * Equipment Inspection * Fast Mobilization * Custom Size Supply * Competitive Pricing Our float shoes are manufactured to **API standards**, tested for reliability, and engineered to deliver superior performance in demanding drilling environments. Whether you require a single unit or bulk quantities for large-scale projects, we provide dependable solutions backed by technical expertise and prompt delivery.
