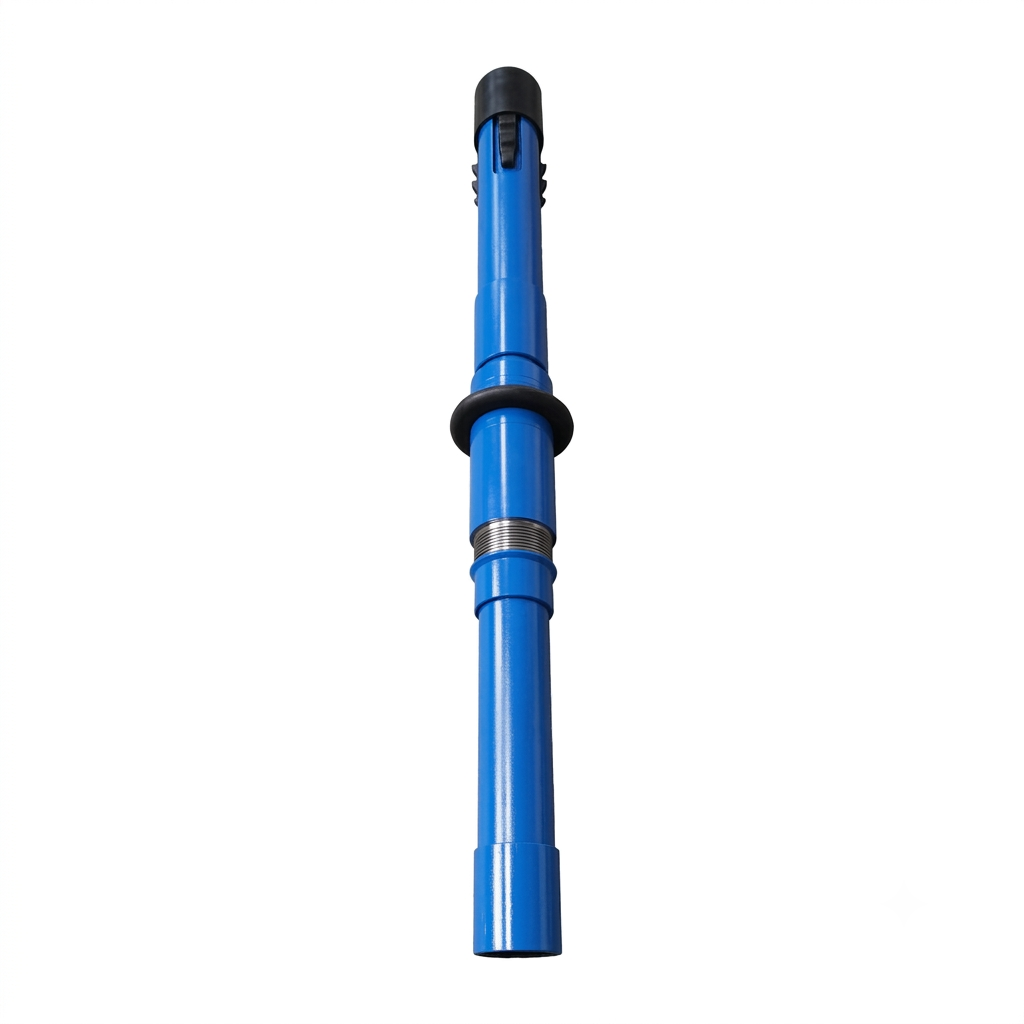

Hydraulic Drilling Jar A Hydraulic Drilling Jar is a downhole impact tool used in drilling operations to free stuck drill strings, bottom hole assemblies (BHAs), casing, tubing, or other downhole tools. It operates by storing hydraulic energy and releasing it as a powerful upward or downward impact (jarring force), helping to dislodge stuck components caused by differential sticking, key seating, pack-off, or mechanical obstruction. Hydraulic drilling jars are essential components of the Bottom Hole Assembly (BHA) and are widely used in vertical, directional, horizontal, offshore, and deepwater drilling operations. Applications Stuck pipe recovery Oil and gas drilling Onshore drilling operations Offshore drilling operations Deepwater drilling Directional drilling Horizontal drilling Extended Reach Drilling (ERD) Fishing operations Well intervention Casing recovery Tubing retrieval HPHT drilling environments Technical Specifications Specification Details Product Type Hydraulic Drilling Jar Material High-Strength Alloy Steel (4145H Modified or Equivalent) Manufacturing Standard API Spec 7-1 Quality Standard API Q1, ISO 9001 Outside Diameter (OD) 3⅛" – 11" Inside Diameter (ID) Varies by Size Length 20 – 35 ft (6 – 10.7 m) Connection Type API REG Pin & Box Operating Pressure Up to 20,000 psi Operating Temperature Up to 204°C (400°F) Maximum Tensile Load Up to 2,000,000 lbf (Depending on Size) Jar Type Upward, Downward or Bi-Directional Hydraulic Jar Hydraulic Fluid High-Temperature Hydraulic Oil Corrosion Resistance Suitable for Standard and Sour Service (H₂S/CO₂) Key Features Generates powerful hydraulic impact force Adjustable jarring delay for controlled operation High tensile and torque capacity Reliable performance in challenging well conditions Smooth hydraulic action reduces tool damage Suitable for vertical, directional, and horizontal wells Long operational service life Easy maintenance and field servicing Compatible with most Bottom Hole Assemblies (BHAs) Designed for HPHT drilling environments Working Principle The hydraulic drilling jar is installed within the Bottom Hole Assembly (BHA) above the drill collars. During operation: The drill string becomes stuck due to differential sticking or mechanical obstruction. The driller applies overpull or compression at the surface. Hydraulic oil inside the jar delays piston movement while pressure builds. Once sufficient energy is stored, the piston rapidly releases. A powerful impact force is transmitted through the drill string. The repeated jarring action helps free the stuck pipe or downhole tool. The hydraulic delay allows maximum energy accumulation before impact, making the jar more effective than mechanical jarring systems. Advantages Highly effective for freeing stuck pipe Controlled impact reduces damage to drilling equipment Adjustable hydraulic timing Reliable operation under extreme downhole conditions High load-bearing capacity Improves drilling efficiency Reduces non-productive time (NPT) Minimises costly fishing operations Long service life Low maintenance requirements Available Types Upward Hydraulic Drilling Jar Downward Hydraulic Drilling Jar Bi-Directional Hydraulic Jar Heavy-Duty Hydraulic Jar Deepwater Hydraulic Jar High-Temperature Hydraulic Jar Fishing Hydraulic Jar Drill String Hydraulic Jar Casing Hydraulic Jar Custom Hydraulic Jar Systems Compatible Equipment Drill Pipe Heavy Weight Drill Pipe (HWDP) Drill Collars Stabilizers Mud Motors Non-Magnetic Drill Collars Fishing Tools Accelerators Shock Subs Rotary Steerable Systems (RSS) Inspection Before Deployment Inspect tool body for cracks, wear, or corrosion. Verify threaded connections and dimensions. Check hydraulic fluid level and seals. Inspect piston movement and hydraulic chamber. Confirm pressure and tensile ratings. Perform non-destructive testing (NDT) if required. Ensure API certification and thread protectors are in place. Maintenance Clean thoroughly after each drilling operation. Replace worn seals and O-rings. Refill or replace hydraulic fluid as specified by the manufacturer. Inspect piston, mandrel, and housing for wear. Apply approved thread compound before installation. Store in a dry, protected environment with thread protectors fitted. Maintain detailed inspection and service records. Industries Served Oil & Gas Exploration Offshore Drilling Contractors Onshore Drilling Companies Well Intervention Services Fishing Operations Geothermal Drilling Mining and Exploration Drilling Energy Service Companies Hydraulic Drilling Jar Available for Sale & Lease We supply premium-quality Hydraulic Drilling Jars for sale and rental, delivering dependable stuck pipe recovery solutions for onshore, offshore, deepwater, and extended-reach drilling operations. Our hydraulic jars are manufactured to API standards and engineered to provide maximum impact force, reliability, and durability in demanding downhole environments. Our Services Hydraulic Drilling Jars for Sale Short-Term Equipment Rental Long-Term Lease Complete Jar Assemblies Bulk Supply Worldwide Delivery Fast Equipment Mobilisation Equipment Inspection & Certification Technical Consultation Installation Support Preventive Maintenance After-Sales Service Why Choose Our Hydraulic Drilling Jars? Manufactured to API Spec 7-1 and international quality standards High-impact hydraulic mechanism for efficient stuck pipe recovery Suitable for HPHT, offshore, deepwater, and directional drilling operations Available in multiple sizes, tensile capacities, and connection types Excellent resistance to wear, corrosion, and fatigue Competitive pricing for both purchase and lease Fast delivery and responsive technical support Our Hydraulic Drilling Jars are engineered to minimise non-productive time, improve drilling efficiency, and provide reliable stuck pipe recovery in the most challenging well conditions. Whether you require a single hydraulic jar or a complete Bottom Hole Assembly (BHA) package, we deliver dependable equipment solutions backed by expert technical support and world-class service.
