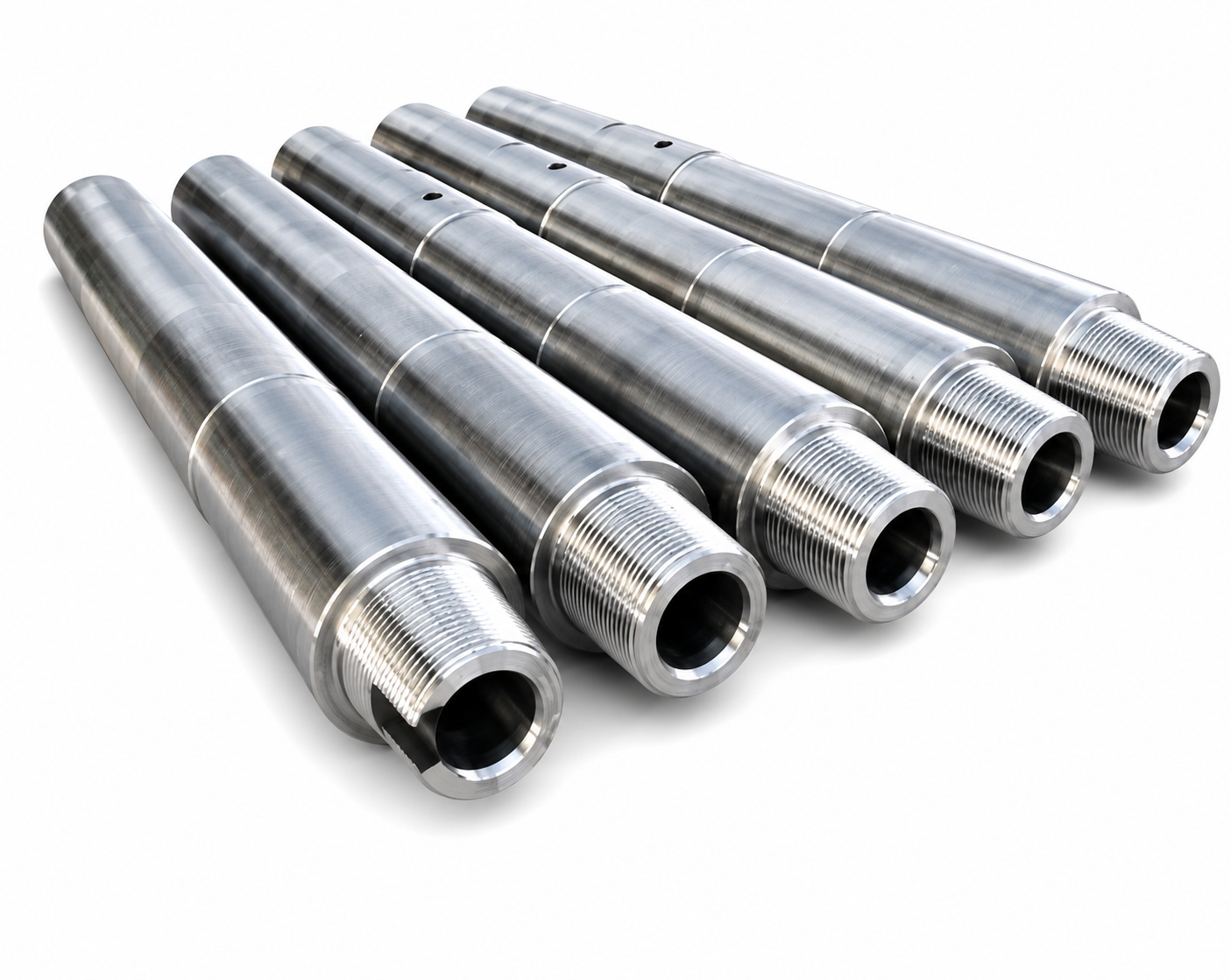

Non-Magnetic Drill Collar A Non-Magnetic Drill Collar (NMDC) is a precision-engineered bottom hole assembly (BHA) component used in directional and horizontal drilling operations. It provides the required Weight on Bit (WOB) while ensuring a non-magnetic environment for sensitive downhole survey and measurement tools such as Measurement While Drilling (MWD), Logging While Drilling (LWD), and Gyroscopic Survey Instruments. Manufactured from high-strength, low-permeability non-magnetic alloy steel, Non-Magnetic Drill Collars are designed to withstand high torque, compressive loads, and harsh downhole conditions while minimizing magnetic interference that could affect drilling accuracy. Applications Directional drilling Horizontal drilling Offshore drilling operations Onshore drilling operations Deepwater drilling MWD (Measurement While Drilling) LWD (Logging While Drilling) Rotary Steerable Systems (RSS) Geothermal drilling High-Pressure High-Temperature (HPHT) wells Scientific drilling projects Technical Specifications Specification Details Product Type Non-Magnetic Drill Collar Material Non-Magnetic Chromium-Manganese Alloy Steel Manufacturing Standard API Spec 7-1 Quality Standard ISO 9001 Certified Outside Diameter (OD) 3⅛" – 11" Inside Diameter (ID) Custom as required Length 30 ft (9.14 m) Standard or Custom Length Connection Type API REG Pin & Box Tensile Strength ≥ 120,000 psi Yield Strength ≥ 105,000 psi Hardness 285–341 HB Magnetic Permeability ≤ 1.01 Operating Pressure Up to 20,000 psi Operating Temperature Up to 200°C (392°F) Surface Finish Precision Machined Corrosion Resistance Excellent Thread Protection API Thread Protectors Key Features Manufactured from premium non-magnetic alloy steel Extremely low magnetic permeability High mechanical strength Excellent resistance to corrosion and wear Superior fatigue resistance Precision-machined API threaded connections Provides optimum Weight on Bit (WOB) Minimizes magnetic interference with MWD/LWD tools Suitable for deep, extended-reach, and horizontal wells Long operational service life Working Principle The Non-Magnetic Drill Collar is installed within the Bottom Hole Assembly (BHA), usually directly above the drilling bit and around MWD/LWD tools. During drilling: The collar supplies the necessary weight to the drill bit for efficient rock penetration. Its non-magnetic alloy creates a magnetic-neutral zone around sensitive electronic survey instruments. MWD and LWD tools accurately measure well trajectory, formation properties, and drilling parameters without magnetic distortion. The collar also stabilizes the drill string, helping reduce vibration and improve drilling performance. Advantages Improves directional drilling accuracy Eliminates magnetic interference Protects expensive MWD/LWD tools Enhances drilling efficiency Provides superior weight transfer to the drill bit High resistance to torsional stress Excellent impact resistance Reduces drilling downtime Long-lasting performance in harsh environments Lower maintenance requirements Available Types Spiral Non-Magnetic Drill Collar Slick Non-Magnetic Drill Collar Integral Blade Non-Magnetic Drill Collar Heavy Weight Non-Magnetic Drill Collar MWD Drill Collar LWD Drill Collar Gyro Survey Drill Collar Custom Machined Non-Magnetic Drill Collar Typical Sizes Available 3⅛" 3½" 4¾" 5" 6¼" 6¾" 7" 8" 8¼" 9½" 9¾" 11" (Custom sizes and lengths available upon request.) Compatible Equipment Drill Bits Heavy Weight Drill Pipe (HWDP) Stabilizers MWD Tools LWD Tools Rotary Steerable Systems (RSS) Mud Motors Crossovers Shock Subs Jar Tools Inspection Before Deployment Verify API thread dimensions. Inspect threaded connections for damage. Measure magnetic permeability. Conduct ultrasonic and magnetic particle inspections where applicable. Check straightness and dimensional tolerances. Inspect for corrosion, cracks, and wear. Ensure thread protectors are installed during transportation. Maintenance Clean thoroughly after each drilling operation. Protect API threads with thread protectors. Store in a dry, covered environment. Inspect for fatigue cracks and surface wear before reuse. Perform regular non-destructive testing (NDT). Apply approved thread compound before installation. Maintain service and inspection records. Industries Served Oil & Gas Exploration Drilling Contractors Offshore Energy Companies Geothermal Energy Projects Mining Exploration Scientific and Research Drilling Non-Magnetic Drill Collar Available for Sale & Lease We supply premium-quality Non-Magnetic Drill Collars for sale and rental, providing reliable drilling solutions for onshore, offshore, Deepwater, and directional drilling projects. Our drill collars are manufactured to international API standards to deliver exceptional performance, durability, and drilling accuracy in demanding well conditions. Our Services Non-Magnetic Drill Collars for Sale Short-Term Equipment Rental Long-Term Lease Bulk Supply Worldwide Delivery Fast Mobilization Equipment Inspection & Certification Technical Consultation Installation Support After-Sales Service Why Choose Our Non-Magnetic Drill Collars? Manufactured to API Spec 7-1 and international quality standards Engineered with premium non-magnetic alloy steel for superior mechanical strength Optimized for MWD, LWD, and Rotary Steerable System (RSS) applications Available in a wide range of diameters, lengths, and connection types Excellent corrosion, wear, and fatigue resistance Competitive pricing for both purchase and lease Fast delivery and dependable technical support Our Non-Magnetic Drill Collars are engineered to improve drilling accuracy, protect sensitive downhole tools, and maximize operational efficiency. Whether you require a single drill collar or a complete fleet for major drilling campaigns, we provide dependable equipment solutions backed by experienced technical support and responsive customer service.
